Automati Liquid Packing Machine

Automati Liquid Packing Machine (2/4/6/8/10/12 heads customized)

This machine is a kind of high-tech filling equipment which is programmableby microcomputer(PLC), photoelectric

sensing, pneumatic execution in onehigh-tech filling equipment. This model is specially used for food, such as:

liquor,soy sauce, vinegar, condiments, vegetable oil, syrup, mineral water and otheredible liquids and pesticide

chemical liquid filling. Filling accuracy, no bubbles, noleakage.Suitable for filling50-500 ml100-1000ML 500-5000ML

bottles(including guide bottles)Suitable for fillingdifferent typesof containers,it can switch fillingspecifications in a

tew minutes, with short filling cycle and highproductioncapacity. No need to add spare parts to replace the filling

specifications, just tomake adjustments can be completed. Users can choose the filling volumeaccording to their

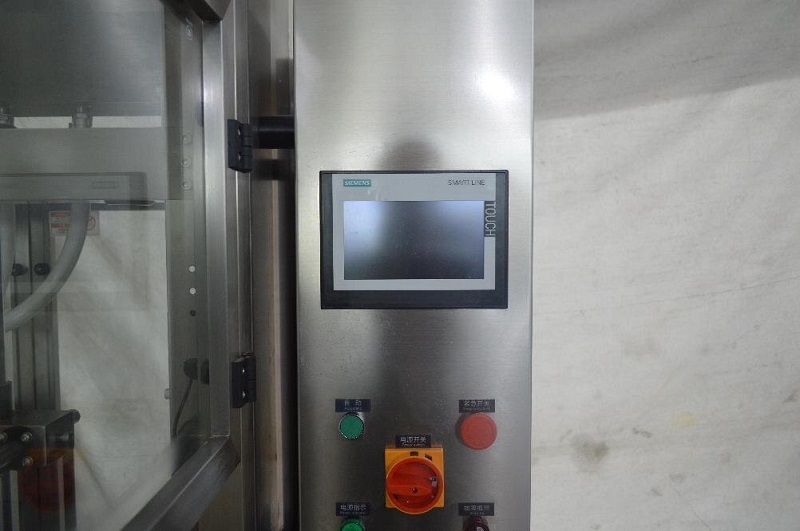

own production capacity to determine the number of filling heads, touch-type operation color screen can display

the production status,operating procedures, filling methods, etc.The screen is intuitive, simpleoperation, easy

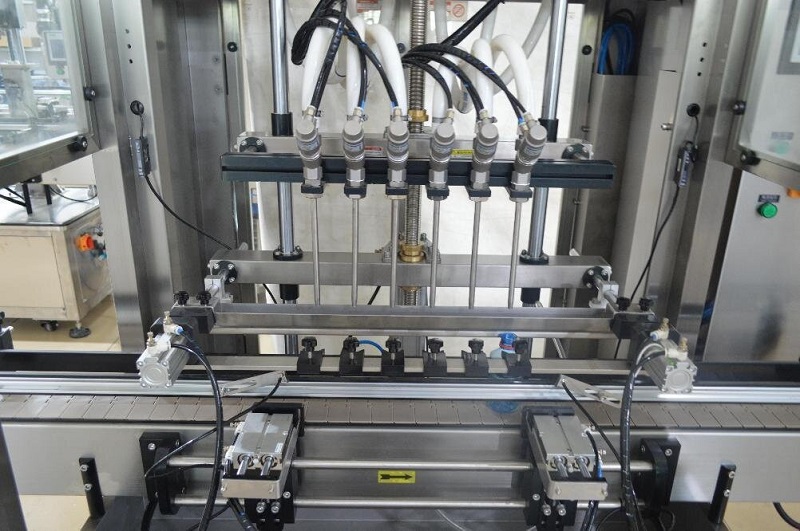

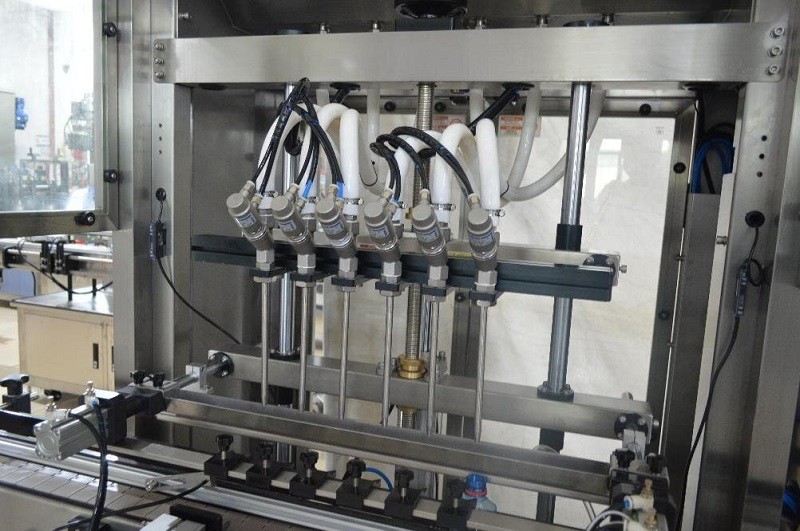

maintenance. Each filling head is equipped with a bottle-necksal' ine desisgrigoes-" a " lraignt-alina m wainod

of groupin bottles- in andbottles-out to expand the filling function. Containers of various shapes can befilled

effectively in this equipment. The international advanced gas filling valve isselected to ensure no leakage or

drooling in the filling process. The powerful PLC software supports the ideal filling operation and man-machine

interface Alloperations are completed on the touch screen.Filling uses fixed runner parameters to control the

filling time to achieve different metering filling. The precise time for pneumatic valve filling can be set to0.01

seconds, which can enable the measurement accuracy to be controlledwithin +1% error range, reduce

unnecessary material loss, and improve usereconomic efficiency. The metering of each filling head can be

individually adjustedto achieve consistent filling metering. The machine has set the bottle entrytechnology

program, and no bottle or no counting is not filled The filling is onlystarted when the number of bottles

recorded by the counter matches the setnumber of filled bottles. The amount of filling can be adjusted to the

requiredamount of filling, and then fine-tuning, you can get the ideal tilling measurement accuracy.

Note: Filling range and speed can be customized according to clients' request)
