Description
1KG,2KGS,3KGS Stainless Steel High Efficiency Fertilizer Spice Detergent Coffee Powder Flour Mixing Machine Manufacturer
A powder mixing machine is an essential piece of equipment used in various industries, including food, pharmaceuticals, chemicals, and plastics. Its primary function is to achieve a uniform blend of different powdered materials, ensuring consistent quality in the final product. Below are details about the types of powder mixing machines, their components, and their applications.
Types of Powder Mixing Machines
1). V Blender:
This machine features a "V" shaped container that rotates. The tumbling action allows for effective blending of powders, making it suitable for free-flowing powders and granules.
2). Ribbon Blender:
A ribbon blender consists of a U-shaped trough with a ribbon agitator. The ribbons move in opposite directions, providing thorough mixing of powders, particularly for larger batches.
3). Paddle Mixer:
This type uses Paddle-shaped blades to fold and mix the powders. It is particularly effective for pastes and viscous materials but can also handle dry powders.
4). Double Cone Mixer:
The double cone mixer has a symmetrical conical shape, allowing it to mix powders gently while minimizing the risk of segregation.
5). Horizontal Mixer:
Horizontal mixers are typically used for bulk powder mixing and can process a large volume of materials simultaneously. They consist of a horizontal barrel and a mixing shaft.
6). Tumble Blender:
A tumble blender rotates the materials within a closed container. This design is often used for mixing fragile or sensitive powders, as it minimizes shear during blending.
7). Fluidized Bed Mixer:
In fluidized bed mixers, air is blown through the powdered material, causing the particles to become suspended and mix evenly. This technology is particularly used for granulation processes.
Key Components of a Powder Mixing Machine
Mixing Chamber: The space where the powders are combined. Its design varies based on the type of mixer.
Agitator/Impeller: The moving part that helps to blend the powders. This could be a ribbon, paddle, or other shapes designed for efficient mixing.
Drive Motor: Powers the mixing process. The motor's capacity may vary based on the machine's size and processing needs.
Inlet/Discharge Ports: Openings for adding powders during mixing and discharging the mixed product at the end of the process.
Control Panel: Allows operators to set mixing times, speeds, and other parameters.
Applications
**Food Industry**: Mixing ingredients for snacks, powders, and meal replacements, such as spices, flour, and protein powders.
**Pharmaceuticals**: Blending active ingredients and excipients to ensure uniform dosages in tablets and capsules.
**Chemical Industry**: Mixing various chemical powders for producing fertilizers, pigments, and cleaning agents.
**Cosmetics**: Combining powders for make-up products, skincare formulations, and other cosmetic products.
**Plastics**: Homogenizing powdered resins and additives before processing.
Advantages of Powder Mixing Machines
1). The body of the mixing machine is made of food-grade 304 stainless steel, with a copper motor, high efficiency, strong power, and a long service life.
2). The machine runs smoothly with silent bearings.
3). The stainless steel rotor can ensure high-speed operation and can rotate in both directions, making it more durable.
4). The material in the cylindrical drum is stirred back and forth by mechanical transmission to achieve the goal of uniform mixing. The mixing time is short and no material accumulates.
5). The machine has a wide range of applications and can be used for mixing different color plastic pigments in industrial production, powder mixing in chemical industry, powder mixing in food processing, biological agent mixing in pharmaceutical production, and battery powder mixing in industrial production.
6). The capacity of the mixing drum ranges from 3L to 2000L, which can meet various different production capacity requirements.
7). The machine can be customized according to the different production requirements of customers, such as adding a full enclosure guard, a high-pressure vacuum drying machine, a removable drum washing and mixing machine, and a material liquid atomization machine...
Conclusion
Powder mixing machines play a vital role in various industries, providing essential functionality for blending material efficiently and effectively.
By understanding the different types, components, and applications, businesses can select the appropriate mixing equipment tailored to their
specific needs, ultimately enhancing product quality and production efficiency.
Herbs Spice Powder Mixer Dry Cassava Flour Starch Mixing Machine Parameters
|
Model |
Barrel volume(L) |
Motor power(W) |
Adjustable speed(r/min) |
Dimension (L* W*H)mm |
Weight(KG) |
|
TP-01 |
3 |
15 |
0-36 |
350*250*480 |
9.5 |
|
TP-02 |
7 |
25 |
0-36 |
430*300*520 |
13 |
|
TP-03 |
10 |
25 |
0-36 |
440*300*580 |
17 |
|
TP-05 |
16 |
35 |
0-33 |
480*380*680 |
19 |
|
TP-06 |
19 |
40 |
0-33 |
350*250*480 |
20 |
|
TP-08 |
26 |
60 |
0-33 |
520*400*940 |
30 |
|
TP-10 |
35 |
90 |
0-33 |
600*420*860 |
33 |
|
TP-15 |
45 |
120 |
0-33 |
600*600*1050 |
36 |
|
TP-20 |
62 |
180 |
0-33 |
580*650*1100 |
39 |
|
TP-25 |
76 |
250 |
0-33 |
630*530*1200 |
46 |
|
TP-30 |
100 |
370 |
0-20 |
910*860*1200 |
90 |
|
TP-50 |
160 |
550 |
0-20 |
860*1000*1450 |
118 |
|
TP-100 |
310 |
750 |
0-20 |
1220*1000*1700 |
158 |
|
TP-150 |
460 |
1100 |
0-17 |
1320*1100*1800 |
180 |
|
TP-200 |
610 |
1500 |
0-17 |
1650*1100*2150 |
260 |
|
TP-300 |
1000 |
4000 |
0-9 |
2800*1400*2500 |
330 |
|
TP-500 |
1500 |
5500 |
0-9 |
3200*1500*2800 |
460 |
|
TP-600 |
2000 |
7500 |
0-7 |
3400*1600*2800 |
580 |
Fertilizer Spice Detergent Coffee Powder Flour Mixing Machine Details

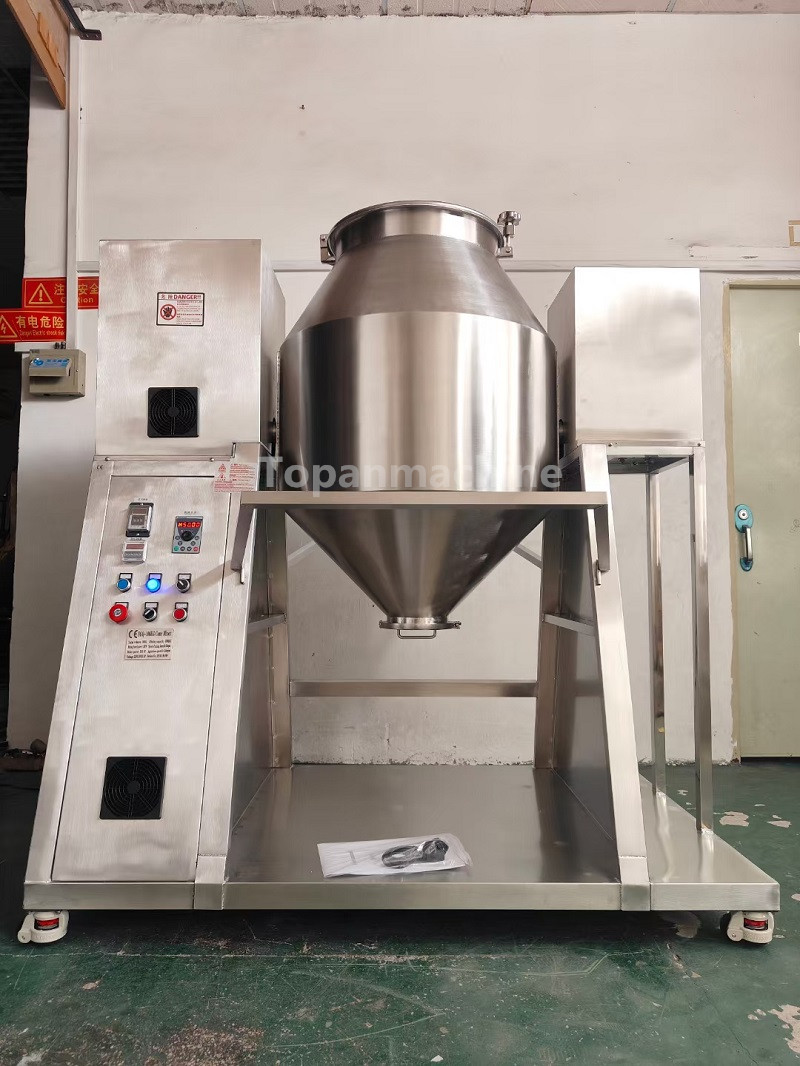

300 KGS Powder Mixing Machine

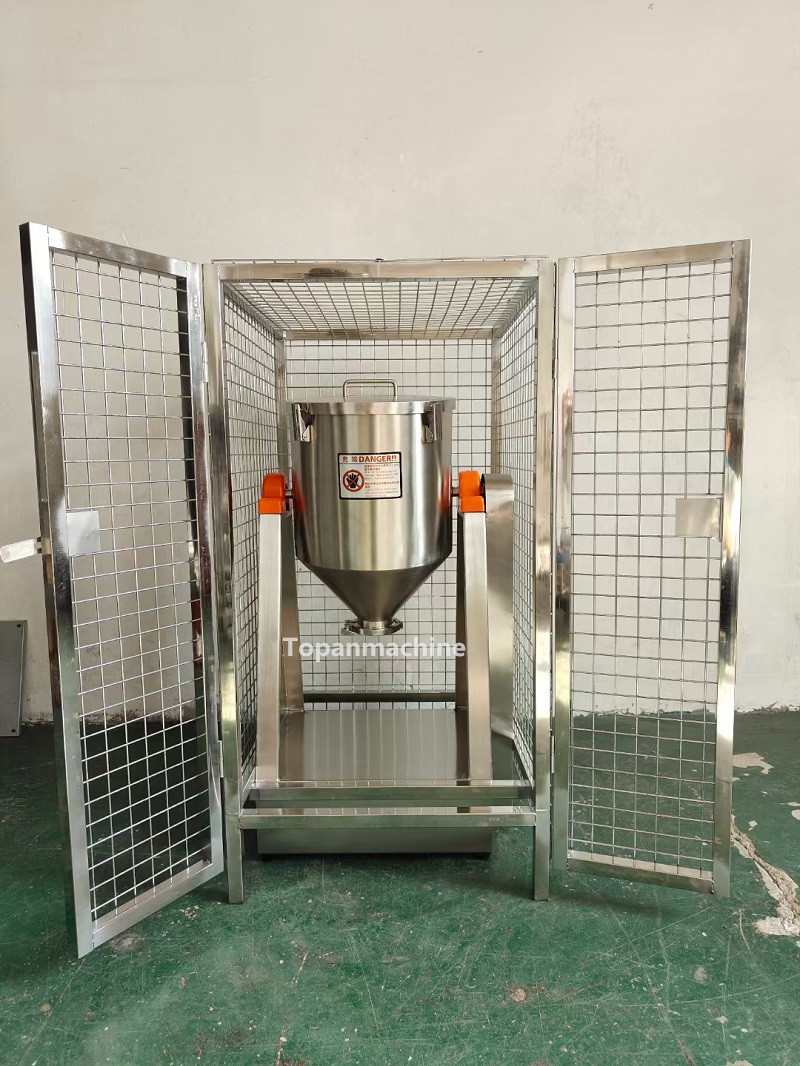

Powder Mixing Machine with Safe Guard
Topan has 1kg,2kgs,3kgs,5kgs,8kgs,10kgs,15kgs,20kgs,25kgs,50kgs,100kgs,150kgs,200kgs and more
Customized Powder Mixing Machine for satisfying different clients' requests.
Chemical Powder Mixing Machine Package for Shipping
More details about Spice Detergent Coffee Powder Flour Mixing Machine and Package Machine ,pls contact me
