Semi Automatic Power Auger Filling Machine

Description

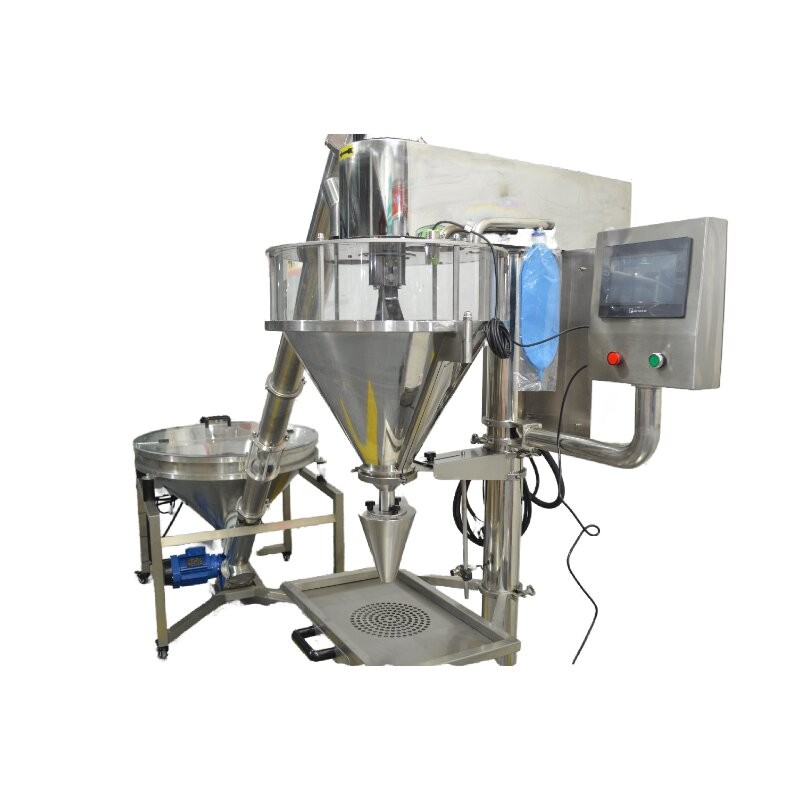

Semi Automatic Power Auger Filling Machine

The series of packing machine can finish the work of measuring,filling,etc. Because of itsunique design,it is more suitable for packing powder granular

materials such as flour.cocoa powder,solid beberage,sugar,cotton sugar, monosodium glutamate,solidbeberage,veterinary medicine,glucose,solid

medicine,etc.Powder additive,carbonpowder,powder,pesticide,dye,flavor

and so on.

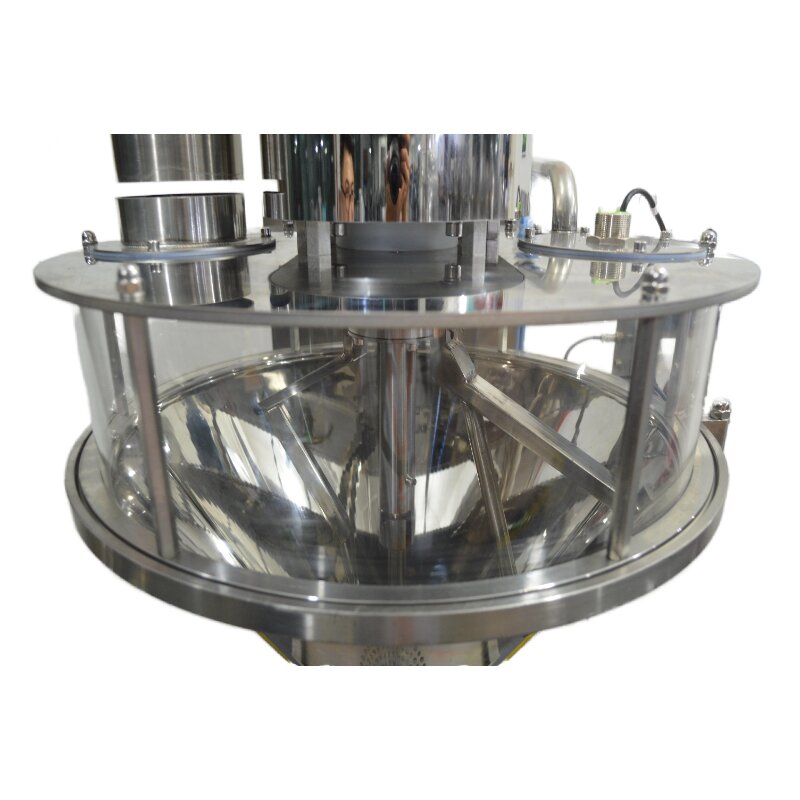

All stainless steel structure, combination or open type material hopper, easy

assembly dismantling and convenient cleaning no need tools.Servo motor and

servo drive to control screw. PLC control, touch-screen human-machine interface, easy to operate.

It is designed as a weighting feedback weight tracking mode, which overcomes

the shortcoming of packaging weight change caused by material ratio change. A variety of product adjustment parameters can be stored,Store up to 10

formulations Replace spiral accessories, can adapt to ultra-fine powder to

small particles and other materials.

Optional Parts

◆ Collecting hopper (Used for materials with good fluidity)

◆Material cutting valve

◆Dust removal machine

◆Clip bag device

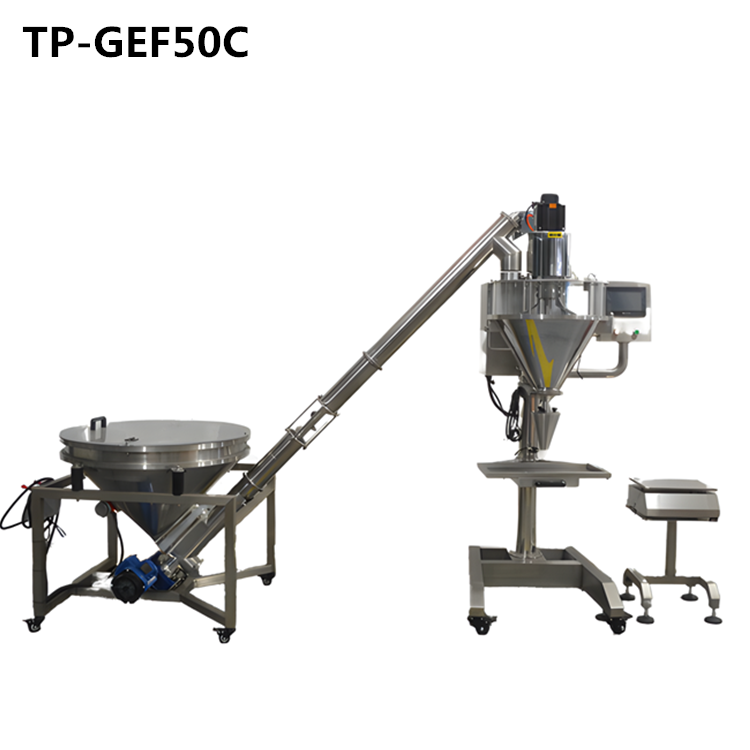

Model	TP-GEF50C
Material hopper	Combined transparent material hopper 50L
Metering mode	screw metering/Down weighing feedback metering/Clip bag weighing metering(Optional)
Packing accuracy	≤ 100g, ≤±2%; 100 – 500g, ≤±1% （Depend on the characteristics of the raw materials）
Filling speed	10 - 40 bag/min （Depend on the feeding speed by workers, generally can do 20-35 bags/min)
Voltage	3P AC208-415V 50/60Hz;1.5 Kw
Hopper Volume	8007901900mm
Total Weight	150kg
